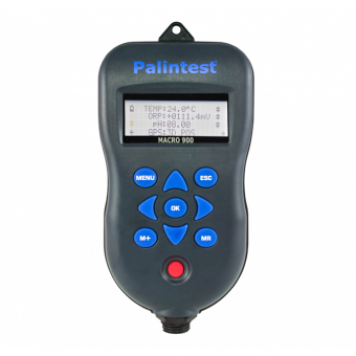

Macro 900 Meter PT1401
Combining an intuitive user interface with a suite of advanced software tools including GPS mapping and trending data, the Macro 900 is the highest specification instrument in the range.
The system can be configured to meet individual requirements by customising the kit with a range of optional ion-selective electrodes and optical probes:
- Constructed from annodised aluminium and featuring a protective sleeve, the probes are protected from the environment
- Fully customisable for your application – select ISE and optical probes
- Guaranteed long life with Kevlar cables connecting your IP67 rated meter to the probe
- Store 1000 data sets, including GPS data to allow for ensuing visual analyses of a survey area.
The system can be configured to meet individual requirements by customising the kit with a range of optional ion-selective electrodes and optical probes:
Specification: Macro 900 Meter PT1401
| Dissolved Oxygen Range | 0 – 500%, 0 – 50 mg/L |
|---|---|
| Dissolved Oxygen Resolution | 0.1%, 0.01 mg/L |
| Dissolved Oxygen Accuracy | 0 – 200%, ± 1% of reading |
| Conductivity Range | 0 – 200 mS/cm (0 – 200,000 μS/cm) |
| Conductivity Resolution | 0 – 9999 μS/cm, 10.00 – 99.99 mS/cm, 100.0 – 200.0 mS/cm |
| Conductivity Accuracy | ± 1% of reading or ± 1 μS/cm (if greater) |
| TDS Range | 0 – 100,000 mg/L |
| TDS Resolution | 0 – 9999 mg/L, 10.00 – 100.00 g/L |
| TDS Accuracy | ± 1% of reading or ± 1 mg/L (if greater) |
| Resistivity Range | 5 Ωcm – 1 MΩcm |
| Resistivity Resolution | 5 – 9999 Ωcm, 10.0 – 1000.0 KΩcm |
| Resistivity Accuracy | ± 1% of reading or ± 1 Ωcm (if greater) |
| Salinity Range | 0 – 70.00 ppt |
| Salinity Resolution | 0.01 ppt |
| Salinity Accuracy | ± 1% of reading or ± 0.1 unit of reading |
| Seawater Specific Gravity Range | 0 – 50 st |
| Seawater Specific Gravity Resolution | 0.1 st |
| Seawater Specific Gravity Accuracy | ± 1.0 st |
| pH Range | 0 – 14 pH (± 625 mV) |
| pH Resolution | 0.01 pH (± 0.1 mV) |
| pH Accuracy | ± 0.01 pH (± 5 mV) |
| ORP Range | ± 2000 mV |
| ORP Resolution | 0.1 mV |
| ORP Accuracy | ± 5 mV |
| Temperature Range | -5°C – 50°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ± 0.5°C |
| Depth Range | 0 – 30m |
| Depth Resolution | 0.01 m |
| Depth Accuracy | ± 0.1 m |
